Welcome

Volume / Expression / Wah pedal

www.hotoneaudio.com

Panel

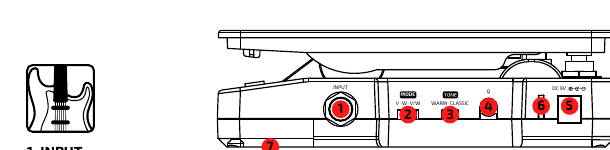

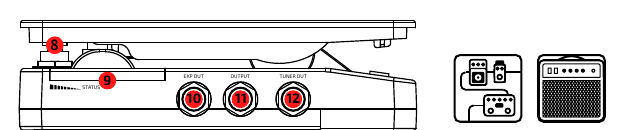

Panel Controls Left Panel Controls Right

1. INPUT

1/4" mono audio jack, for connecting guitar.

2. MODE

  • V — Volume mode, for use as volume pedal.
  • W — Wah mode, for use as a wah pedal.
  • V/W — Switchable volume/wah mode, combining volume and wah pedals in one.

3. TONE

For selecting wah filter frequency range.

4. Q

For adjusting wah filter frequency width.

5. DC IN

Plug in 9V DC adapter (center negative).

6. LED

MODE LED Color
V Green
W Blue
V/W Green/Blue

7. Battery Compartment

For holding a 9V battery.

8. Footswitch

Switch between on/off status or active volume/wah in V/W mode (Soul Press II cannot be bypassed in V/W mode).

9. STATUS

A set of LEDs showing the current pedal position. You can set the LEDs on demand by the 3-way switch hidden in the battery compartment.

10. EXP OUT

1/4" TRS jack, for connecting to another device with EXP control IN jack. EXP out works in any mode. When used as an expression pedal, Soul Press II can work without a power supply.

11. OUTPUT

1/4" mono audio jack, for connecting to one other gear.

12. TUNER OUT

1/4" mono audio jack, for connecting tuner. Perfect for Hotone Skyline Tuner.

Battery Installation & STATUS Setting

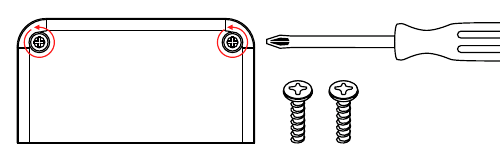

Battery Cover Removal

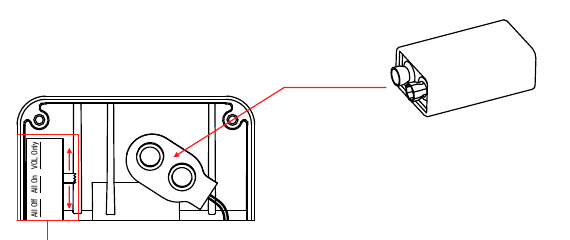

Battery and Switch
  1. Remove two screws from the battery compartment with a phillips screwdriver.
  2. Remove the battery compartment cover.
  3. Install a 9V battery.
  4. Use the 3-way switch to set STATUS LEDs.

There are three options available:

  • All Off: Switches the STATUS LEDs off.
  • All On: The STATUS LEDs work in all modes.
  • VOL Only: The STATUS LEDs work only in VOL mode.

Specifications

  • Pot Resistance (EXP out): 10kΩ
  • Input Impedance: 1MΩ
  • Output Impedance: 100Ω
  • Wah Range Selector:
    • WARM — 290Hz to 1.4kHz
    • CLASSIC — 360Hz to 1.8kHz
  • Current Consumption: Max 30mA
  • Dimensions: 81mm (W) x 162mm (D) x 51mm (H)
  • Weight: 500g
